Areas of application

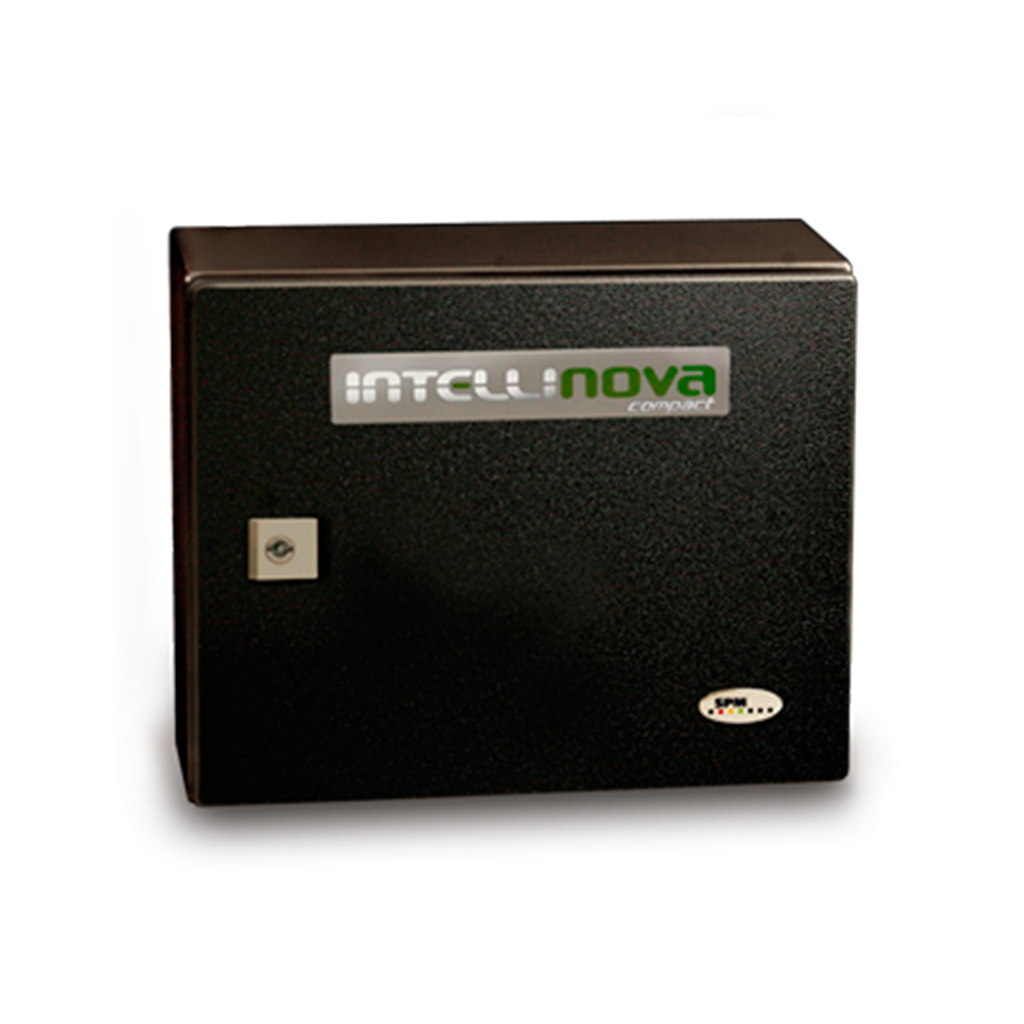

Suitable for all types of applications, this leading-edge system offers the strongest combination of measuring techniques available, providing maximum flexibility for fault detection. Wind turbines, pumping stations, and auxiliary equipment are a few examples where Intellinova Compact is the ideal condition monitoring solution. Fans and gearboxes, including planetary gears, are typical applications. Implementing the SPM HD measuring technique, it is also the appropriate choice for low-speed applications (0.1-50 rpm) such as agitators, crushers, conveyors, or cranes, etc. Intellinova Compact is fully compatible with its siblings in the Intellinova family of online systems and can be run in an integrated system or as standalone units.

Optimal cost-efficiency

The system is available in four versions, each with a fixed channel configuration for both shock pulse and vibration measurement. All versions come with multiple rpm and analog inputs as well as status outputs. The IntelliLogic functions enable taking full advantage of these hardware features. With the capability to accept process data and evaluate the running condition based on a combination of process and measurement data, the Intellinova units are well suited for monitoring machinery with complex operating procedures.
